38½" x 37 ⅜" Freedom ADA Shower Base, with Dbl Receiver Flange

5 to 6 weeks manufacturing time

38½" x 37 ⅜" Freedom ADA Shower Base, with Dbl Receiver Flange

5 to 6 weeks manufacturing time
Fiberglass (36" x 36" ID)
Model: APF3838BFPANRRF
Made in America

US$698.00 Save 42% US$1,209.00

Model: APF3838BFPANRRF
Made in America

* Color upgrades for Pan TEMPORARILY UNAVAILABLE - only white: White (Default)

*Actual color may vary from on-screen representation.

5 to 6 weeks manufacturing time
5 to 6 weeks manufacturing time

TOTAL US$698.00

Qty

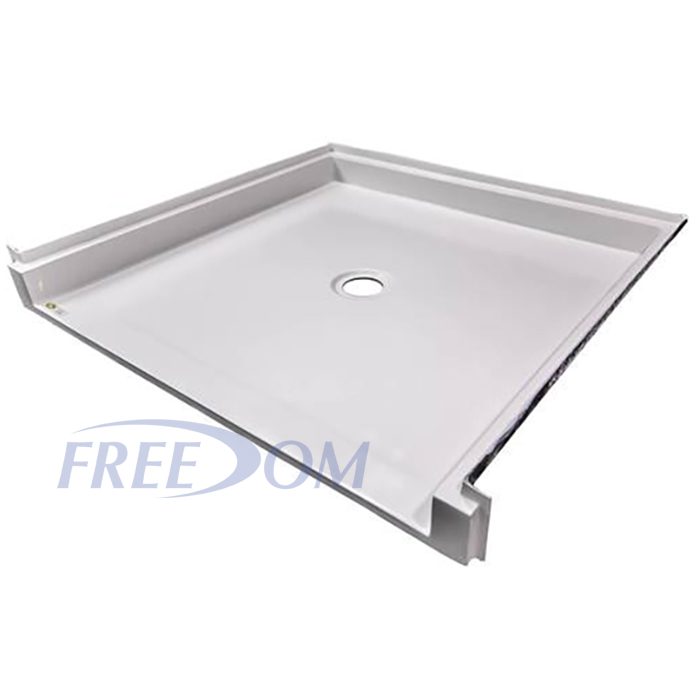

Freedom ADA compliant transfer shower pans have a 36” x 36” inside dimension to meet ADA code compliance. Fiberglass construction with a durable, easy to clean applied acrylic finish, the ADA transfer shower pan features a textured, slip-resistant floor. A 3/4” barrier free threshold creates safe access for bathers and should meet ADA requirements (always check local codes).

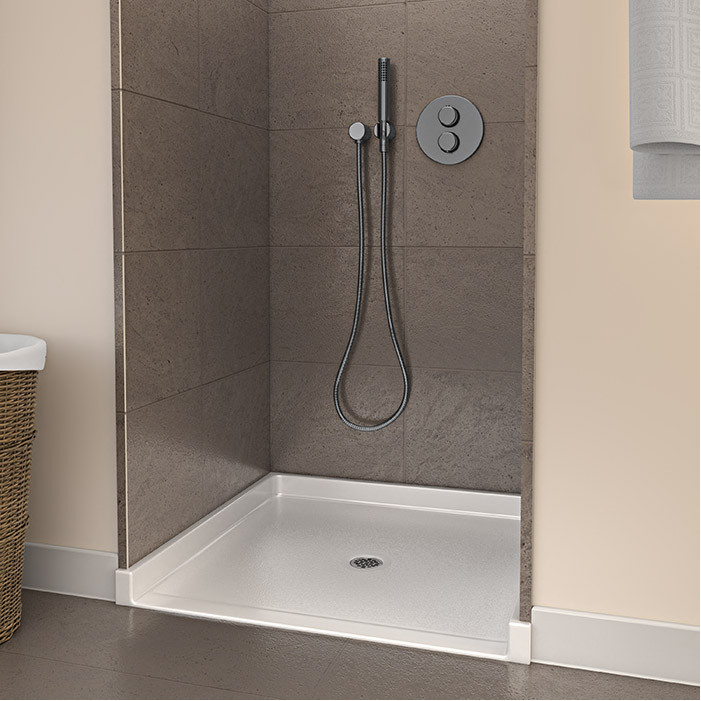

This shower floor has a double receiver flange to accomodate ADA compliant access. Combine the low profile shower base with custom tiled walls and the appropriate accessories to fulfill ADA compliance in commercial buildings.

What is an ADA Transfer Shower?

ADA Transfer Showers allow wheelchair users to roll up beside the shower entrance and transfer to a wall mounted shower seat. Inside the shower the bather will be able to reach the controls, and have grab bars to support safe movement within the shower.  Freedom 36 x 36 ADA Shower Pan is reinforced and pre-leveled, so it can be installed on a subfloor with no mud set. These features make for an easy installation, especially important for large jobs.

For peace of mind, Freedom ADA shower bases come with a 30 year warranty on manufacturing defects.

Highlights

36 x 36 ADA Shower Pan:

  • Outside Dimensions: 38½”w x 37⅜”d x 4 ½”h
  • ADA compliant inside dimension 36” x 36”
  • Finished width 40", pocket depth 36⅜"
  • ¾” barrier free threshold

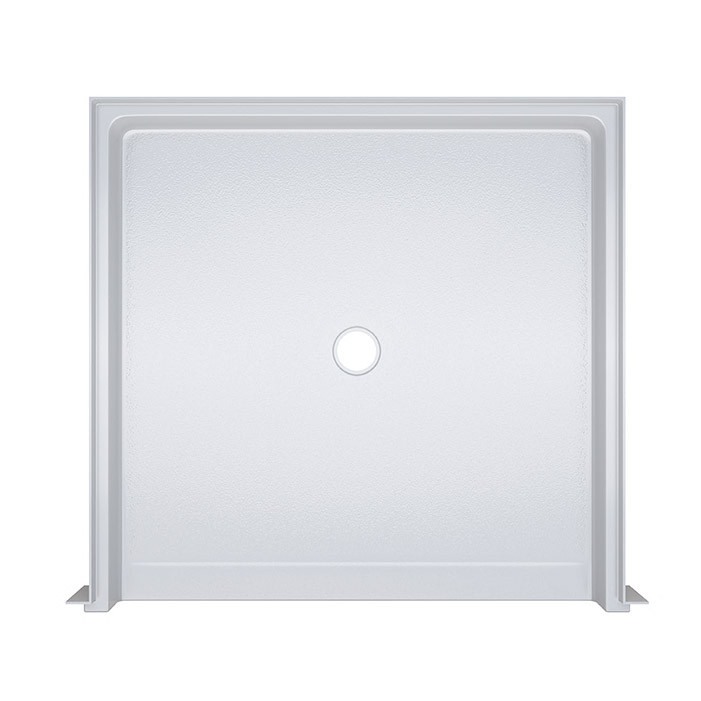

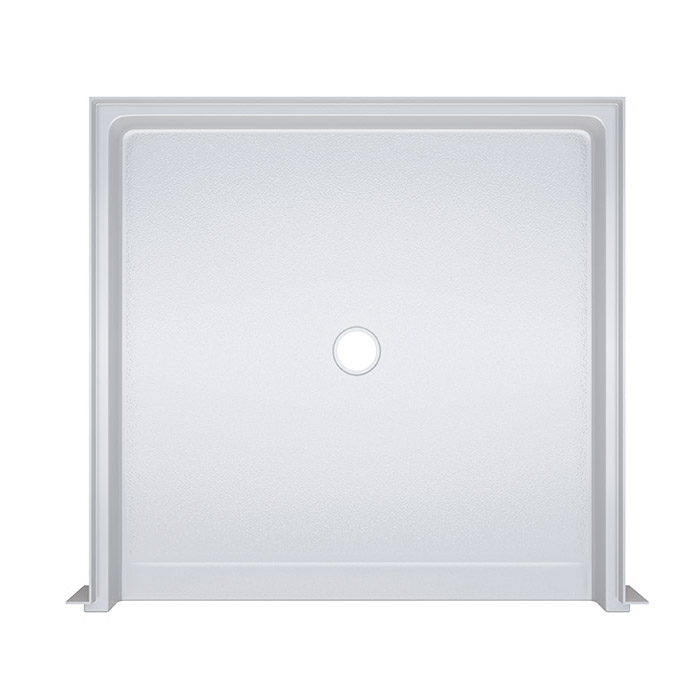

  • Double receiver flange
  • Self-supporting and pre-leveled shower base eliminates mud setting
  • Easy-to-clean applied acrylic finish
  • Textured slip-resistant floor
  • Made in America
  • 30 Year Manufacturer’s Limited Warranty

Code Compliance:

  • ADA Accessibility Guidelines for Buildings and Facilities
  • IPC International Plumbing Code
  • UPC Uniform Plumbing Code
  • ANSI Z124.2 Standards for Plastic Showers
  • ANSI A117.1 Accessible and Useable Buildings and Facilities
  • CSA approved
  • NAHB, HUD, FHA

(Transfer Showers are not compliant in California at this time)

Available Accessories:

  • Folding Shower Seat
  • Grab Bars
  • Shower Rod
  • Weighted Curtain
  • Pressure Balance Valve
  • Hand-held Shower and Slide Bar
  • Surface mount stainless soap dish
  • Caulkless Drain
  • Collapsible Water Retainer
  • Color upgrade
