60" x 42" Tile Over Curbed Shower Pan

In Stock

60" x 42" Tile Over Curbed Shower Pan

In Stock
Model: APR60X42CURB-PANS
Made in America

From US$783.00

Model: APR60X42CURB-PANS
Made in America

* Select drain placement for 60" x 42" Tile Over Curbed Pan

* Select drain placement for 60" x 42" Tile Over Curbed Pan

US$783.00 US$783.00 US$783.00
US$783.00 US$783.00 US$783.00

* Optional Upgrade to Square Drain Plate: Round Chrome Drain Plate (Default)

In Stock
In Stock
Qty

Tiling shower pans are manufactured with an integrated drain, splash walls, and come ready to accept tile directly on the surface without the need for liners, mudding or hot mopping.

The 60” x 42” shower base for tile showers are available with a center or end drain to try and match existing plumbing, making your installation easier. Add ceramic, marble or stone tiles to the easy step shower base for an upscale designer shower. Recent improvements to the product allow you to use a wide array of readily available modified thin sets to install tiles onto the shower pan.

The easy to install tiling shower base with curbed threshold is leak proof and mold resistant, and comes with a round standard drain plate with a chrome finish. You can upgrade to a square designer plate which allows for easy installation of cut tile.

The optional Z flashing system is designed to eliminate the potential threat of water overflowing the splash wall or penetrating down behind the finished tile work. It secures to the studs holding the tileable shower pan level and in place. The shower base for tiling projects come with a 3 year limited warranty on manufacturing defects.

Highlights

Tiling Shower Pans:

  • 60” x 42” Outside dimension
  • 4.5” Curbed threshold (Center drain has 3.75" threshold)

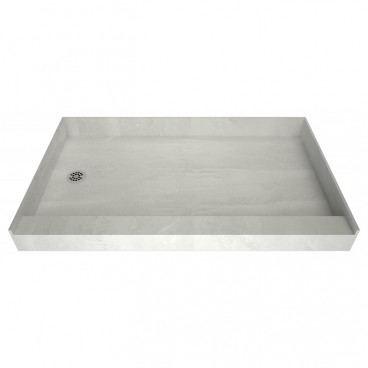

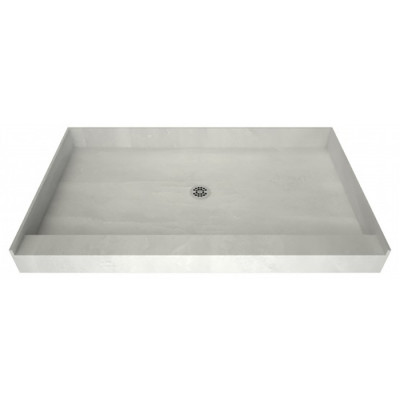

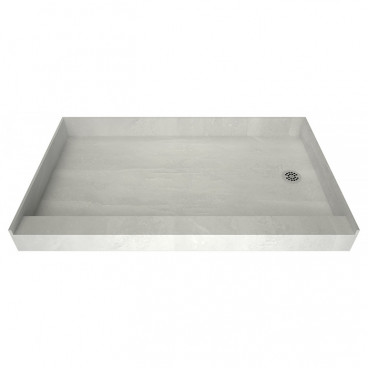

  • Center, Left or Right drain available.
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 7” splash walls on end drains, 6.25" on Center drain
  • Tile sets directly on the surface
  • 3 Year Manufacturer’s Limited Warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI
  • A117.1-98
  • ASTM F462-79

Optional Accessories:

  • Upgrade to square drain plate:
    • Polished Chrome
    • Oil Rubbed Bronze
    • Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Call to ask about benches and more sizes. Barrier free models available here.

We also carry tile over trench drain shower pans here



Click here for California Prop 65 Warning
