60" x 42" Tile Over Accessible Shower Pan

In Stock

60" x 42" Tile Over Accessible Shower Pan

In Stock
Model: APR60X42BF-PANS

From US$863.00

Model: APR60X42BF-PANS

* Select drain placement for 60" x 42" Tile Over Accessible Pan

* Select drain placement for 60" x 42" Tile Over Accessible Pan

US$863.00 US$863.00 US$863.00
US$863.00 US$863.00 US$863.00

* Optional Upgrade to Square Drain Plate: Round Chrome Drain Plate (Default)

In Stock
In Stock
Qty

Tile-Over Shower Pans are manufactured with an integrated drain and 6" splash walls, and come ready to accept tile directly on the surface without the need for liners, mudding or hot mopping.

Add ceramic, marble or stone tiles to the barrier free shower base to create an elegant shower to suit your bathroom design, personal preference and accessibility needs. Recent improvements to the product allow you to use a wide array of readily available modified thin sets to install tiles onto the shower pan.

The easy to install, barrier free ready for tile shower bases are leak proof and mold resistant, and come with a round standard drain plate with a chrome finish. You can easily upgrade a round drain plate to a square designer plate allowing for easy installation of cut tile.

The optional Z flashing system is designed to eliminate the potential threat of water overflowing the splash wall or penetrating down behind the finished tile work. It secures to the studs holding the tiling shower base level and in place. A flashing kit is available for each tile ready shower pan size.

The shower pans for tile bathrooms come with a 3 year limited warranty on manufacturing defects.

Tile Ready Shower Base Features:

  • 60” x 42” Outside dimension
  • 1” Barrier free entrance on Center drain pan, 1.75” accessible threshold on end drain pans

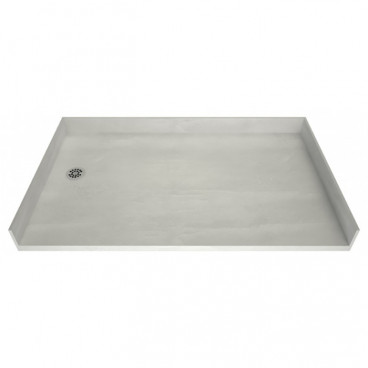

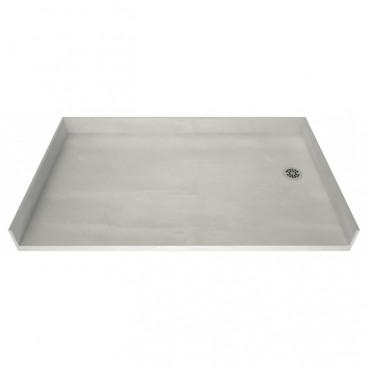

  • Center, left or right drain available
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 6” splash walls
  • Tile sets directly on the surface
  • 3 Year manufacturer’s limited warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI A117.1-98
  • ASTM F462-79

Available Accessories:

  • Upgrade to square drain plate
  • Polished Chrome, Oil Rubbed Bronze OR Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Click here for curbed 60"x42" pans

Call to ask about benches and more sizes

Click here for California Prop 65 Warning

Highlights

  • Tiling Shower Base
  • Barrier Free Threshold
  • Integrated Shower Drain
  • Ideal for Tiling a Shower

Downloads

Video

Freedom Tile Redi installation video for an easy step curbed pan or a barrier-free shower pan

Freedom Tile Redi installation video for an easy step curbed pan or a barrier-free shower pan

This is an instructional installation video for our Freedom Tile Redi Shower Base.
