Fold up Side of Toilet Rail, Stainless

In Stock

Fold up Side of Toilet Rail, Stainless

In Stock
Model: APO-WR-SS

From US$433.00

Model: APO-WR-SS

* Choose Size and Handing of Side of Toilet Rail, STAINLESS

* Choose Size and Handing of Side of Toilet Rail, STAINLESS

US$433.00 US$433.00 US$442.00 US$442.00
US$433.00 US$433.00 US$442.00 US$442.00
In Stock
In Stock

TOTAL From US$433.00

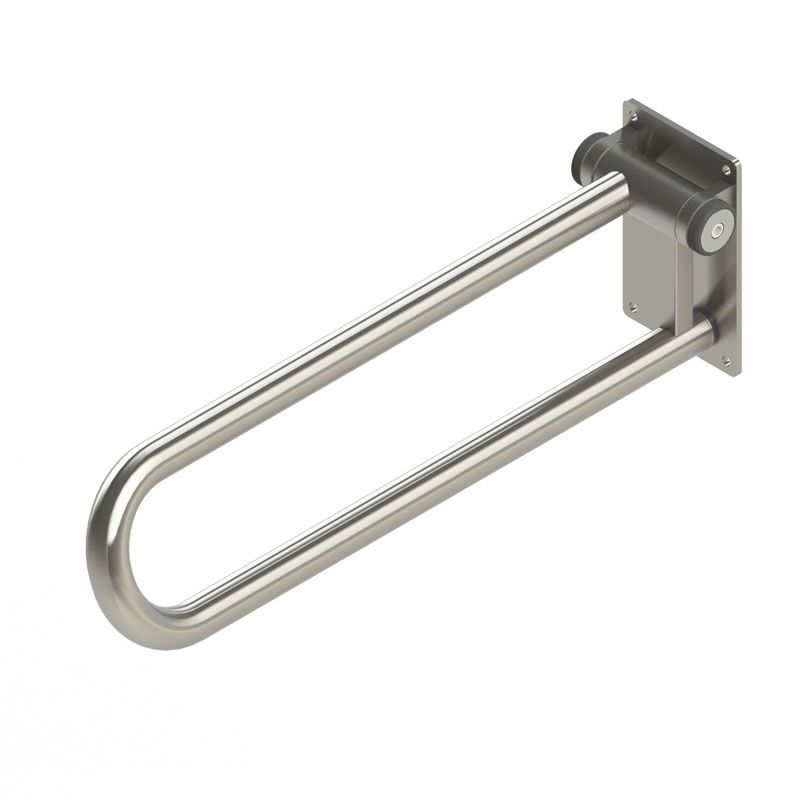

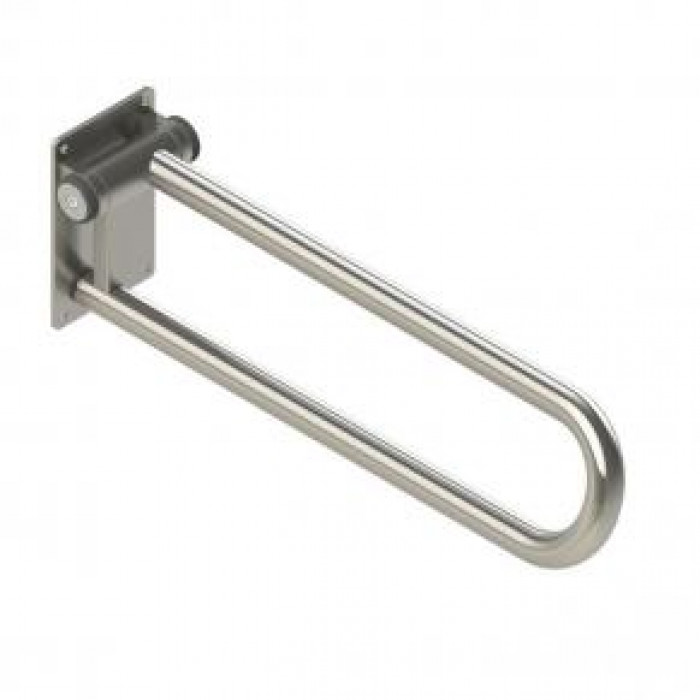

Fold up Side of Toilet Grab Bars help improve mobility around the toilet by providing a sturdy accessible grab bar with offset rails (to help reduce wrist strain when gripping the lower rail). When not in use, these swing up grab bars can fold up against the wall.

Caregivers sometimes worry about folding grab bars unexpectedly falling down while attending to a patient. These Side of Toilet safety bars feature a friction hinge that can hold itself anywhere between the up and down position, allowing custom use.

Install a side of toilet grab bar on both sides of the toilet for maximum support. These fold down grab bars meet and exceed federal guidelines when properly installed with wood backing behind the wall.

Side of Toilet Rail Features:

  • Grab Rail Length: choose 28” or 32”
  • Grab Rail Diameter: 1.5”
  • Grab Rail offset: 1.5”, available for left or right side.
  • Handed by seated position
  • Alloy steel material
  • Brushed Stainless Steel finish
  • Weight Capacity: 400 lbs.

Added Options:

  • Toilet Roll Holder

NOTE: If there is no wood backing behind the wall of the toilet, there are a couple of options to choose from.

Add a Wood Wall Plate:

High quality Baltic 11-ply wood plate allows installation of Side of Toilet Rail without having to open walls to create structural reinforcement.

Wood Wall Plate Features:

  • Dimensions 19” x 22.75” to extend over wood studs
  • 2 sets of pre-drilled holes reinforced with T-Nut fasteners
  • Unfinished to allow customization

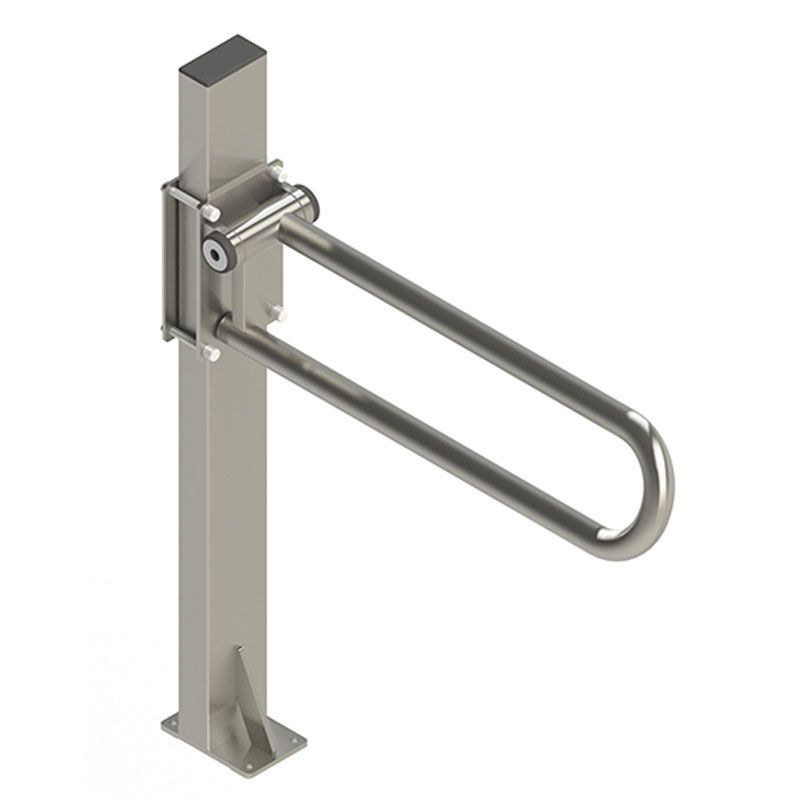

Add a Floor Mast:

If fastening the Side of Toilet Rail to the wall is not an option, the floor mast provides an alternative mounting structure to install the folding grab bars.

Floor Mast Features:

  • Sits 39” high
  • Side of toilet rail is height adjustable between 31”-36”
  • Maintain 400 lbs. weight capacity of the rail
  • Stainless steel finish to match
  • Compatible only with model APO-WR-SS (28” & 32”, Left or Right)


  • ADA Accessible Toilet Grab Bar
  • 28" or 32" Grab Rail Lengths
  • Bars Fold Up & Out of the Way
  • 400 lbs. of Support
