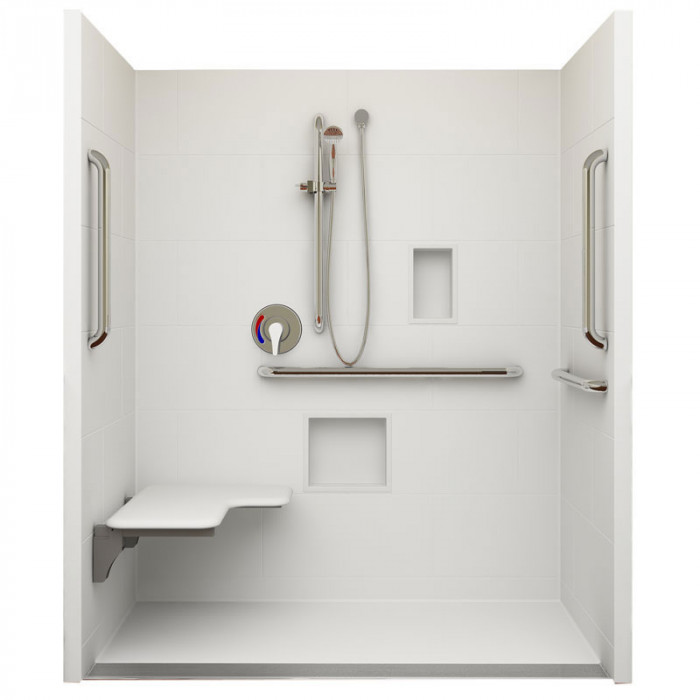

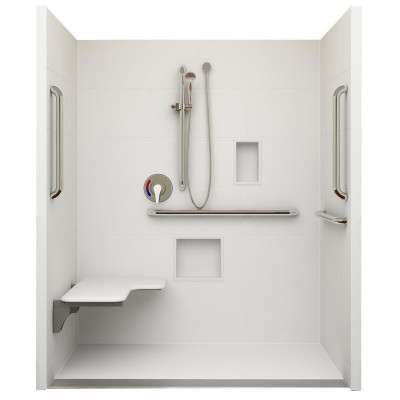

62¼" x 32⅛" ADA Linear Drain Roll In Shower, COL, Left Seat

Out of Stock
(Shower stall only)

62¼" x 32⅛" ADA Linear Drain Roll In Shower, COL, Left Seat

Out of Stock
SEE NOTE ON AVAILABILITY Handed by Seat wall 1-Piece, New Construction (60"x 30"ID)
Made in America

US$3,506.00 Save 32% US$5,152.00

(Shower stall only)

Made in America

Out of Stock
Out of Stock

*NOTE on AVAILABILITY: Due to a temporary supply chain delay, any orders for Linear Drain showers will ship without drain grates. Grates will be provided once they are available

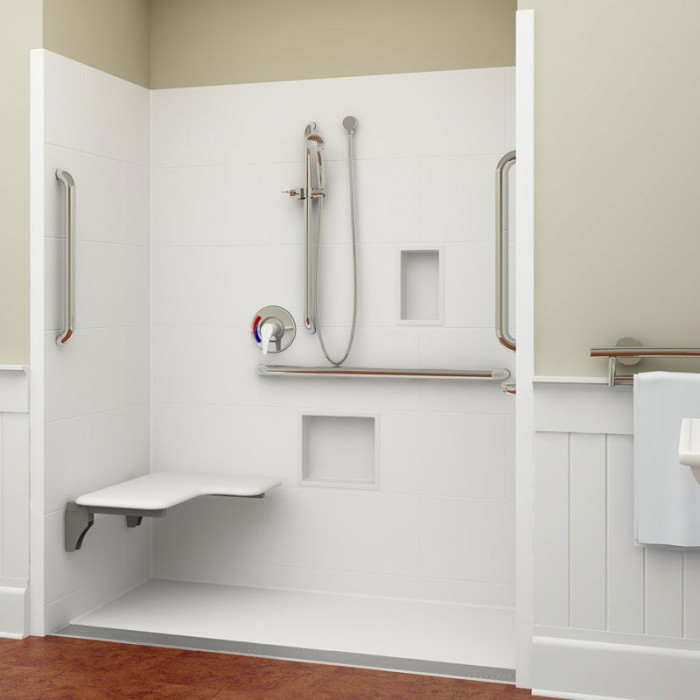

Freedom ADA Roll in Showers with a Linear Drain have a 60” x 30” inside dimension as per ADA requirements. ADA roll in shower inserts work best for new construction projects.

The innovative pre-molded linear drain prevents water run off onto the bathroom floor. The sleek and efficient bevelled threshold  allows for easy installation on a slab or subfloor without having to recess, saving money and installation time.

Modern Linear Drain and Subway Tile Walls

Handicapped accessible showers have a pre-leveled shower pan that is  sloped towards the drain. ADA Fiberglass showers have a modern over-sized subway tile pattern, with durable applied acrylic finish that is easy to clean.

Full reinforced backing in the walls adds sturdiness and structural reinforcement for added accessories. You can order your shower with factory installed shower seat and grab bars to meet ADAAG guidelines for an ADA compliant roll in shower. A great choice for senior living, large projects, or assisted living facilities, Freedom Showers are easy and quick to install, simplifying your construction project. For peace of mind, Freedom Showers come with a 30 year manufacturer's warranty.


Linear Drain Roll In Showers:

  • Outside pocket dimensions: 62¼”w x 32⅛”d x 78¾”h
  • Inside dimension 60” x 30” x 76¾"
  • ADA compliant when properly installed
  • California Title 24 compliant
  • 1-piece for new construction
  • Integral front trench drain, with stainless grate

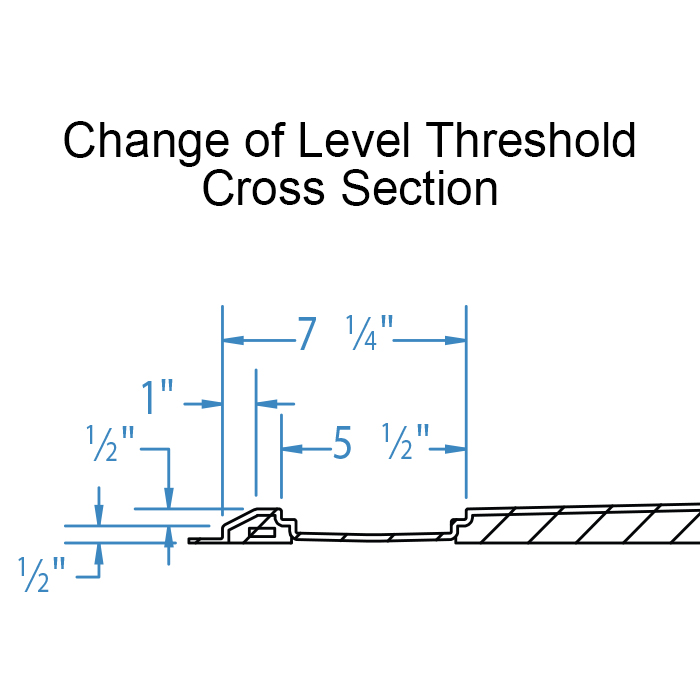

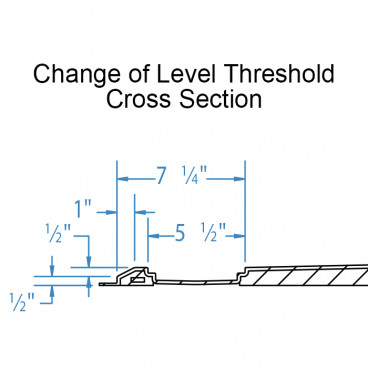

  • ½" skirt and ½" change of level exterior threshold
  • Handed by the Left Seat side
  • Self-supporting, pre-leveled shower base
  • 12" x 24" subway tile pattern
  • Easy-to-clean applied acrylic finish
  • Textured slip-resistant floor
  • Full reinforced backing
  • Made in America
  • 30 Year Manufacturer’s Limited Warranty

Available Accessories:

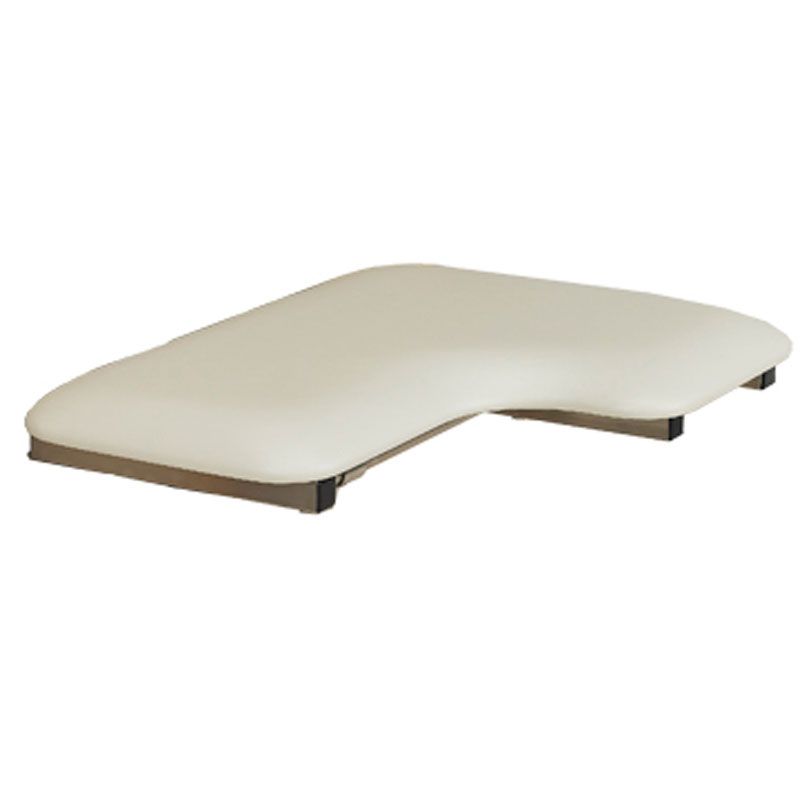

  • L shaped padded Folding Shower Seat (factory installed)

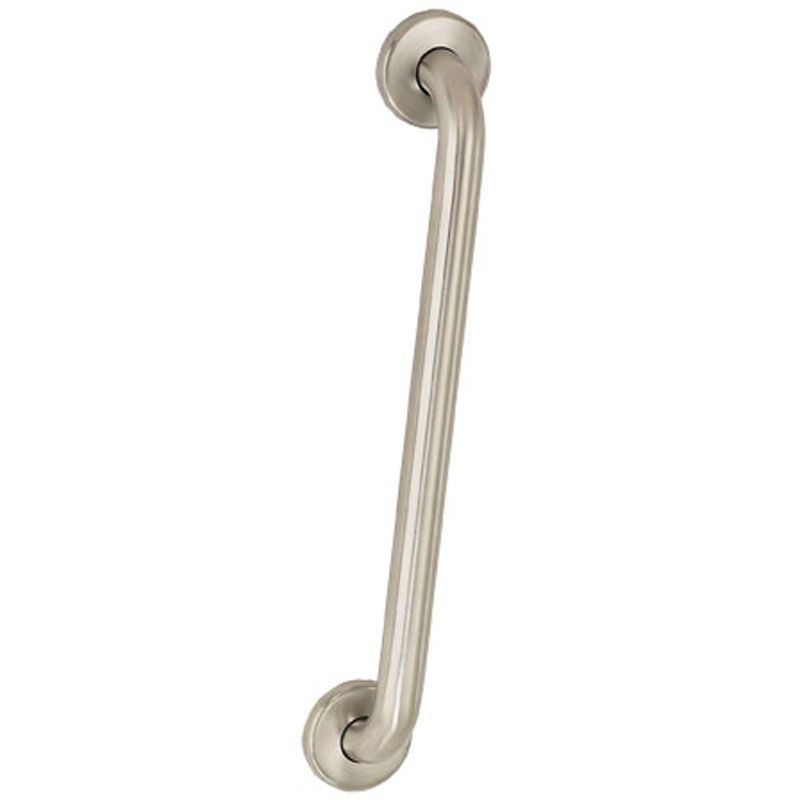

  • Grab Bars (factory installed)
  • Shower Rod (ships loose)
  • Weighted Curtain
  • Pressure Balance Mixing Valve

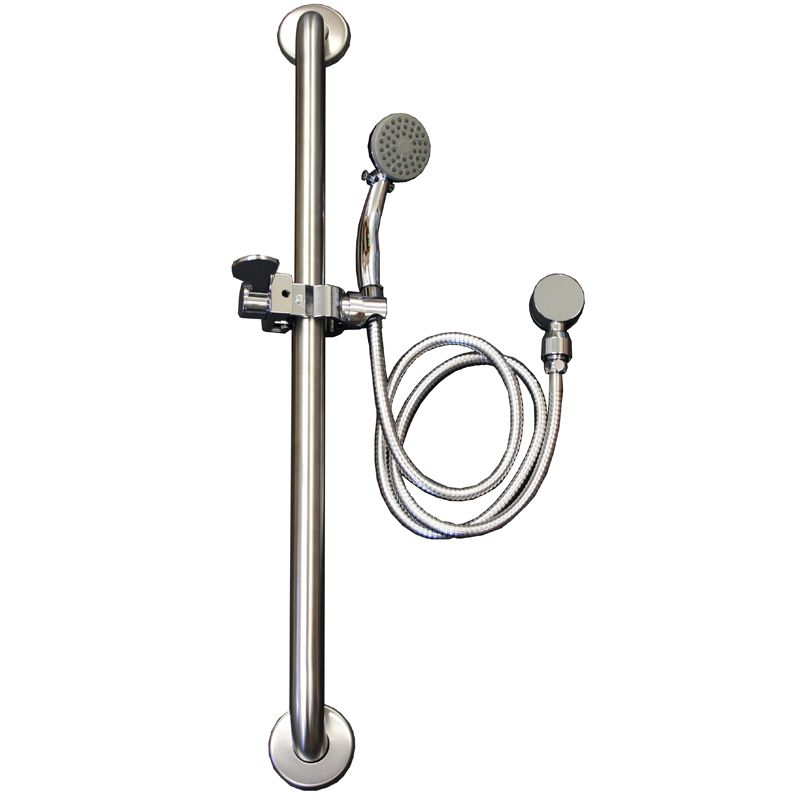

  • Hand-held Shower and Slide Bar
  • Caulkless Drain

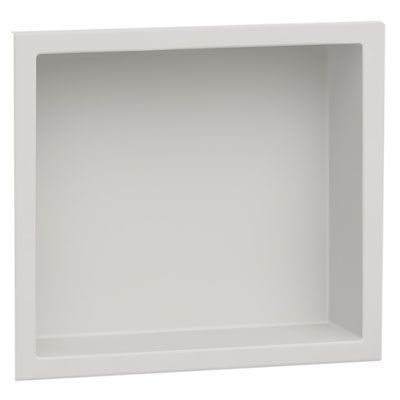

  • Large recessed soap dish (shipped loose)

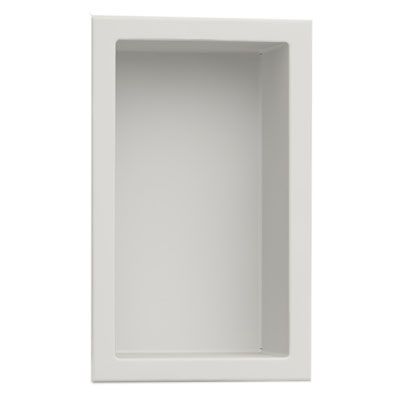

  • Small recessed soap dish (shipped loose)

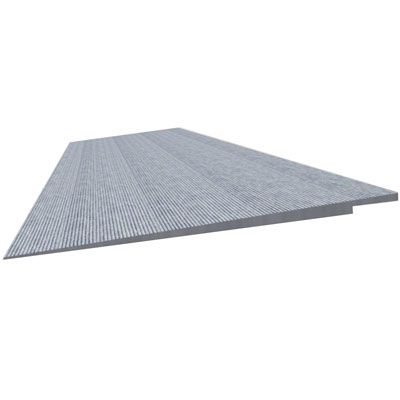

  • Underlay ramp


Click here for California Prop 65 Warning


Product Specification (PDF) 02/07/2018 166.17KB
Installation (PDF) 23/03/2019 2.18MB
Soap Niche Installation (PDF) 09/06/2021 1.1MB


Freedom Showers Linear Drain Informational Video

Freedom Showers Linear Drain Informational Video

The Freedom Linear Drain shower stall offers simple functional installation. Popular in hospital and Aging in Place settings, this durable shower will can meet commercial ADA code compliance. This shower stall is wheelchair accessible and can be fully equipped with accessories. Choose from a list of options such as: hand held shower with glide bar, grab bars, folding shower bench and recessed shampoo niches.

Freedom Linear Drain Shower Installation video

Freedom Linear Drain Shower Installation video

This video illustrates the installation process for a Freedom Trench Drain Shower.
