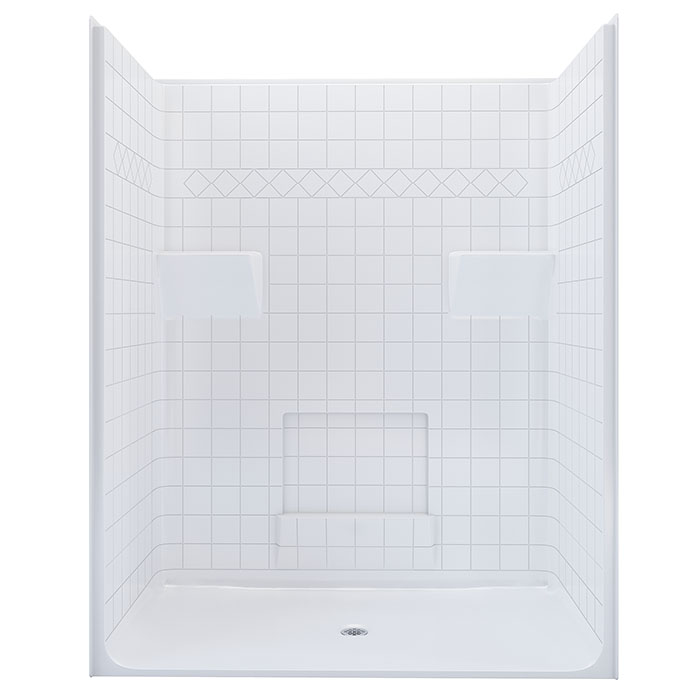

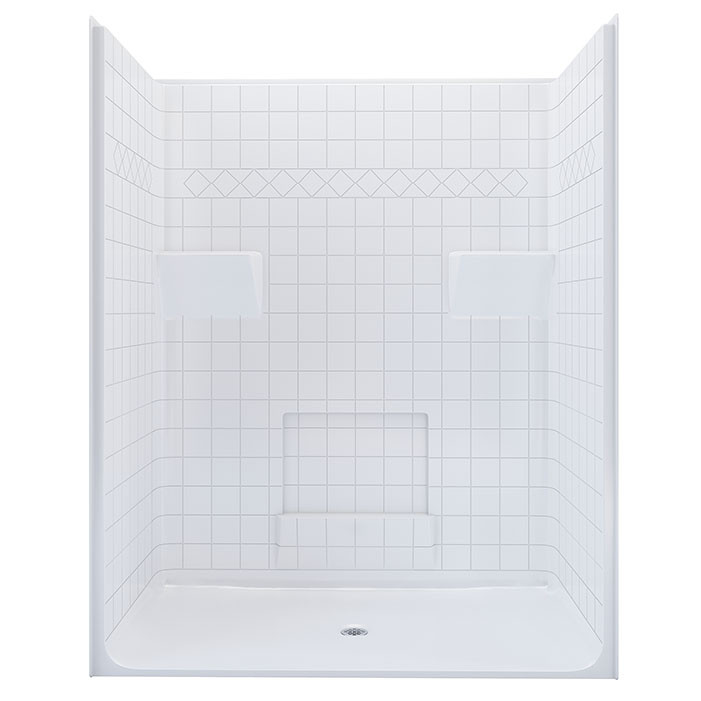

63" x 34" Freedom ADA Roll In Shower, LEFT

4 to 5 weeks manufacturing time
(Shower stall only)

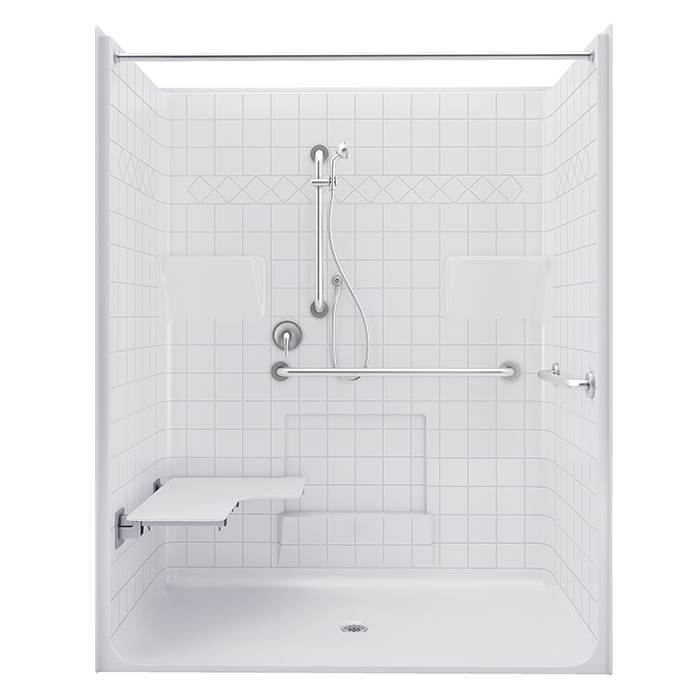

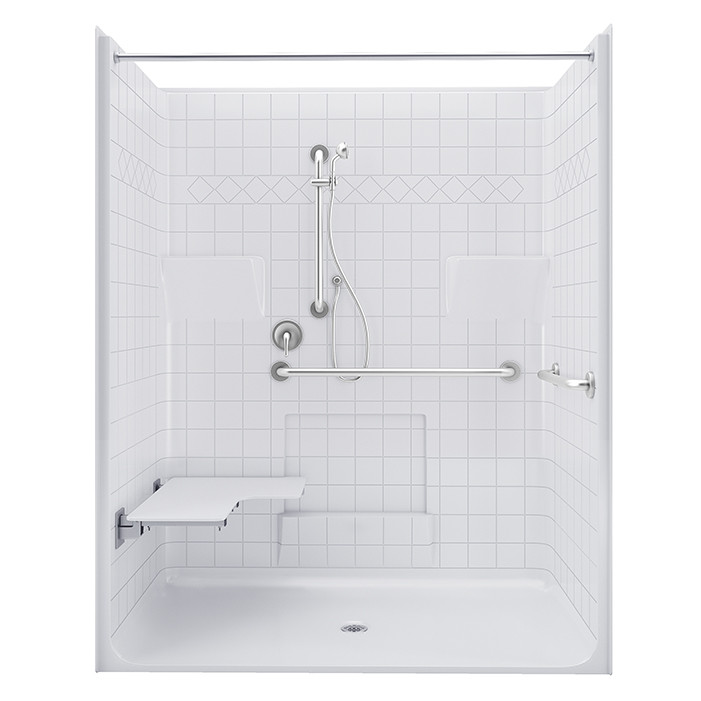

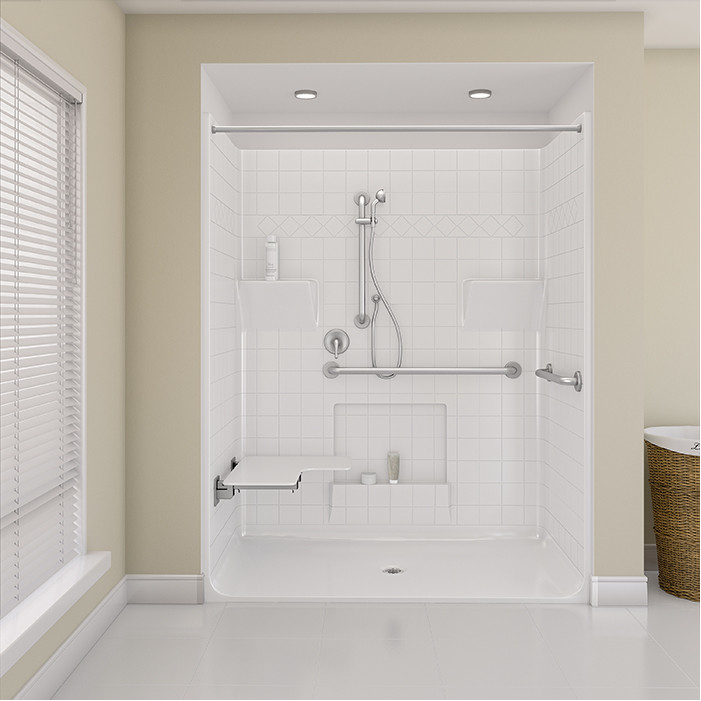

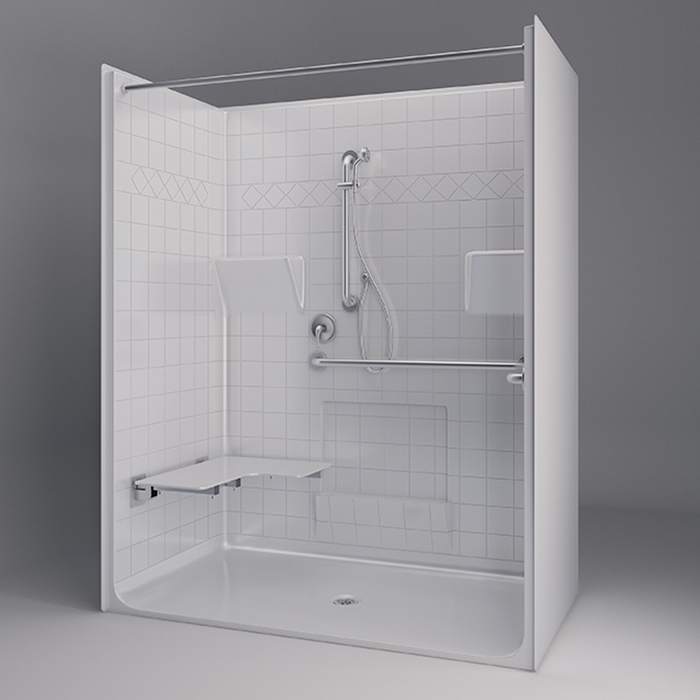

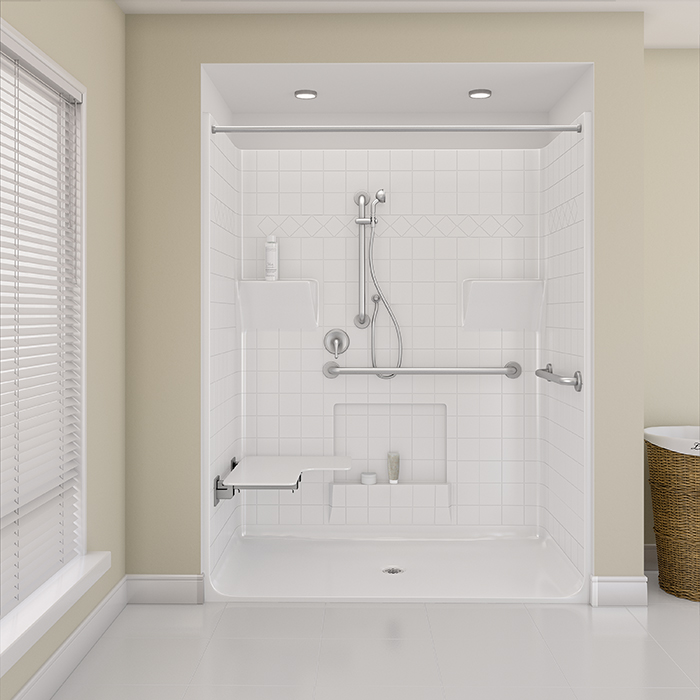

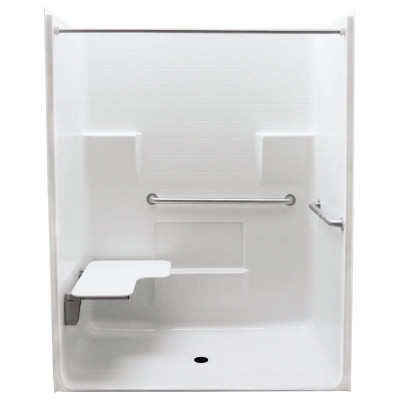

Shown with optional accessories

63" x 34" Freedom ADA Roll In Shower, LEFT

4 to 5 weeks manufacturing time
Handed by Seat wall 1-Piece, New Construction (60" x 30" ID) Traditional 7/8" Threshold
Model: APFQ6334BF875L
Made in America

US$2,332.00 Save 24% US$3,055.00

(Shower stall only)

Model: APFQ6334BF875L
Made in America

4 to 5 weeks manufacturing time
4 to 5 weeks manufacturing time
Qty

Freedom Roll In Showers Have Everything You Need

Freedom ADA Roll in Showers have a 60” x 30” inside dimension to comply with ADA requirements. One-piece ADA compliant showers are specially designed for new construction projects.

Handicapped shower stalls have a 7/8” reinforced threshold, and a pre-leveled shower base, making installation simple and quick. Install finished flooring up to the same threshold height to create a completely flush wheelchair shower entrance. Fiberglass roll in shower stalls have a diamond accented tile look, and are finished with a durable, easy-to-clean applied acrylic.

Full wall backing adds sturdiness and structural reinforcement for added accessories. Order with a factory installed folding shower seat and grab bars to meet ADAAG guidelines for an ADA compliant roll in shower. A great choice for completing commercial projects, Freedom ADA Shower stalls are easy to install and simplify your construction project. All Freedom wheelchair access showers come with a 30 year manufacturer's warranty.

NOTE:

For smaller quantities reference model number APFQ6334BF875L

For large projects (truckloads) reference model number APF6334BF875L

Highlights

ADA Roll in Shower:

  • Outside Dimensions: 63”w x 34”d x 78.875”h
  • ADA compliant inside dimension 60”x 30”
  • 1-piece for new construction
  • 7/8” barrier free threshold
  • Handed by the Left Seat side
  • Self-supporting and pre-leveled shower base eliminates mud setting
  • 3 molded soap ledges
  • Tile pattern with diamond accents
  • Easy-to-clean applied acrylic finish
  • Textured slip-resistant floor
  • Full wall reinforcement
  • Made in America
  • 30 Year Manufacturer’s Limited Warranty

Code Compliance:

  • ADA Accessibility Guidelines for Buildings and Facilities
  • ANSI A117.1 Accessible and Useable Buildings and Facilities
  • IPC International Plumbing Code
  • UPC Uniform Plumbing Code
  • ANSI Z124.2 Standards for Plastic Showers
  • Complies With CSA Standards
  • TAS & NC
  • Call for MAS compliance or other requirements
  • **For California see NOTE below

Available Accessories:

  • Folding Shower Seat (factory installed)
  • Grab Bars (factory installed)
  • Shower Rod (factory installed)
  • Weighted Curtain
  • Pressure Balance Mixing Valve and Hand-held Shower and Slide Bar (factory mounted)
  • Caulkless Drain
  • Recessed soap dish (factory installed)
  • Collapsible Water Retainer



**Please note for CALIFORNIA: This ADA compliant roll-in shower does not meet the requirements for the slope of a shower floor in California Building Code Chapter 11A (4% or less in all directions) or Chapter 11B (2% or less in all directions).  Please confirm that this shower does not need to meet the requirements in Chapter 11A or 11B of the California Building Code before purchasing, as we cannot accept returns. See our trench/linear drain unit to meet the slope requirements.



Click here for California Prop 65 Warning

Downloads

Product Specification (PDF) 01/09/2020 474.85KB
Installation (PDF) 03/12/2019 811.24KB
CAD dwg 19/11/2018 204.22KB
Care and Cleaning (PDF) 15/07/2018 875.34KB
Brochure (PDF) 15/07/2018 305.19KB
Care and Cleaning (PDF) 15/07/2018 875.34KB
Brochure (PDF) 15/07/2018 305.19KB

Video

Installation Video for One Piece Freedom Showers

Installation Video for One Piece Freedom Showers

Watch this short 4 minute video for instructions on installing a one piece Freedom ADA Roll In Shower with a barrier free threshold and Easy Base technology, complete with important tips and clear visual illustration for each step. Please call Accessibility Professionals if you have any questions about installation, before you start your project. 1-877-947-7769

Some Information About ADA Showers

Some Information About ADA Showers

Freedom ADA showers come in 2 styles. ADA transfer showers and ADA roll-in showers. Let Accessibility Professionals help you find the right shower for your commercial compliant shower project.
