72" Tile Over Accessible Shower Pans (Various depths)

In Stock

72" Tile Over Accessible Shower Pans (Various depths)

In Stock
Model: APR72INCHBF-PANS

From US$955.00

Model: APR72INCHBF-PANS

* Select depth size for 72" Tile Over Accessible Pan

* Select depth size for 72" Tile Over Accessible Pan

US$955.00 US$972.00
US$955.00 US$972.00

* Optional Upgrade to Square Drain Plate: Round Chrome Drain Plate (Default)

In Stock
In Stock

TOTAL From US$955.00

Qty

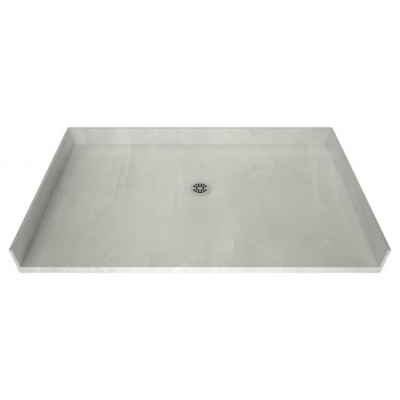

Tile Over Shower pans are manufactured with an integrated drain and 6" splash walls, and come ready to accept tile directly on the surface without the need for liners, mudding or hot mopping. Recent improvements to the product allow you to use a wide array of readily available modified thin sets to install tiles onto the shower pan.

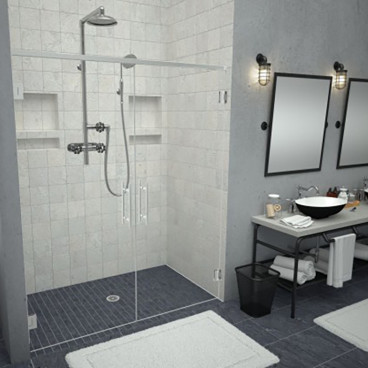

Add ceramic, marble or stone tiles to the 72” wide barrier free shower base for an extra-large, designer shower to suit your bathroom design, personal preference and accessibility needs. The easy to install, barrier free, ready for tile shower bases are leak proof and mold resistant, and come with a round standard drain plate with a chrome finish. You can easily upgrade a round drain plate to a square designer plate allowing for easy installation of cut tile.

The optional Z flashing system is designed to eliminate the potential threat of water overflowing the splash wall or penetrating down behind the finished tile work. It secures to the studs holding the tiling shower base level and in place. A flashing kit is available for each tile ready shower pan size. The shower pans for tile bathrooms come with a 3 year limited warranty on manufacturing defects.

Tileable Shower Base Features:

  • 72” x 33” or 72” x 37” Outside dimension
  • 1.25” Accessible threshold
  • Center drain Integrated
  • 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 6” splash walls
  • Tile sets directly on the surface
  • 3 Year Manufacturer’s Limited Warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI A117.1-98
  • ASTM F462-79

Optional Accessories:

  • Upgrade to square drain plate
  • Polished Chrome, Oil Rubbed Bronze OR Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Click here for curbed 72" pan

Call to ask about benches or more sizes.

Click here for California Prop 65 Warning

Highlights

  • Tileable Barrier Free Shower Base
  • Easy to Install, Tile Direct to Shower Pan
  • Barrier Free 1.25" Threshold
  • 72" Wide for Large Shower Entrance

Downloads

Product Specification 72" x 33" (PDF) 24/11/2020 238.73KB
Product Specifications 72" x 37" (PDF) 24/11/2020 238.56KB
Installation (PDF) 20/05/2021 366.06KB

Video

Freedom Tile Redi installation video for an easy step curbed pan or a barrier-free shower pan

Freedom Tile Redi installation video for an easy step curbed pan or a barrier-free shower pan

This is an instructional installation video for our Freedom Tile Redi Shower Base.
