60" x 33" Tile Over Accessible Shower Pans

60" x 33" Tile Over Accessible Shower Pans

Model: APR60X33BF-PANS

From US$715.00

Model: APR60X33BF-PANS

In Stock
In Stock
Customize and Add To Cart
In Stock

Product Highlights:

  • Tileable Bathtub Replacement Shower Base
  • Easy Installation
  • Tile Direct to Surface
  • Easy Access Low Threshold
Product Overview

Product Overview

Tile Ready Shower pans are manufactured with an integrated drain and 6" splash walls, and come ready to accept tile directly on the surface without the need for liners, mudding or hot mopping. Recent improvements to the product allow you to use a wide array of readily available modified thin sets to install tiles onto the shower pan.

Bathtub replacement shower pan

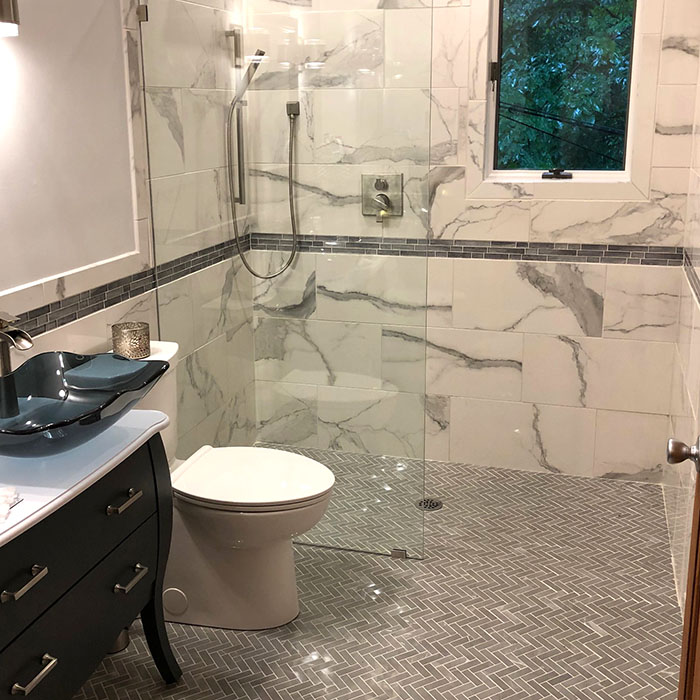

The 60” x 33” is designed to replace a standard bathtub, and comes with either an end drain to try and match existing plumbing or a center drain, making your installation easier. Add ceramic, marble or stone tiles to the barrier free shower base for an upscale designer shower to suit your bathroom design, personal preference and accessibility needs. This shower pan for tile applications is ideal for custom bathrooms.

Low Threshold Shower Base

The barrier free threshold allows for easy access, and if you build the floor up in front of the pan, you can create a flush roll in shower. The easy to install, ready for tile shower bases are leak proof and mold resistant, and come with a round standard drain plate with a chrome finish. You can easily upgrade to a square designer plate allowing for easy installation of cut tile.

The optional Z flashing system is designed to eliminate the potential threat of water overflowing the splash wall or penetrating down behind the finished tile work. It secures to the studs holding the tiling shower base level and in place. A flashing kit is available for each tileable shower pan size. The shower pans for tile bathrooms come with a 3 year limited warranty on manufacturing defects.

Tile Ready Shower Base Features:

  • 60” x 33” Outside dimension Left, Right or Center drain available
  • 1.75” Accessible threshold on end drain pans. 1.00" Accessible threshold on center drain pans.
  • Integrated 2” PVC drains (adaptable to cast iron or ABS)
  • Round polished adjustable drain plate
  • Integrated curb with structural ribbing
  • 6” splash walls
  • Tile sets directly on the surface
  • 3 Year Manufacturer’s Limited Warranty

Code Compliance:

  • USL - United States Standard
  • ANSI Z124.2-95 ICC/ANSI A117.1-98 ASTM F462-79

Available Shower Pan Accessories:

  • Upgrade to square drain plate
  • Polished Chrome, Oil Rubbed Bronze OR Satin (Brushed) Nickel
  • Z flashing system
  • Soap niches
  • Leg ledge

Click here for curbed 60"x33" pans

Call to ask about benches or more sizes.

Click here for California Prop 65 Warning



Freedom Tile Redi Trench shower pan installation

This is an instructional installation video for our Freedom Linear Drain Shower Base.
