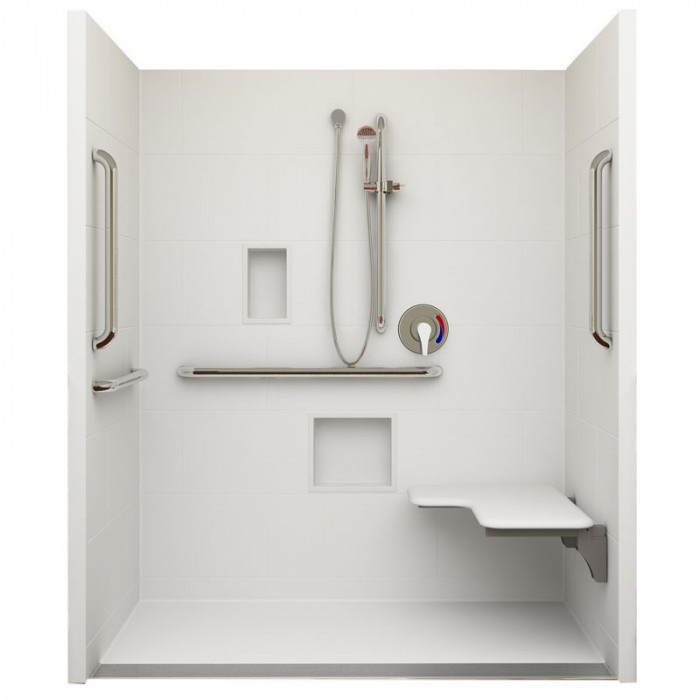

62¼" x 38⅛" ADA Linear Drain Roll In Shower, Right Seat

Out of Stock
(Shower stall only)

62¼" x 38⅛" ADA Linear Drain Roll In Shower, Right Seat

Out of Stock
SEE NOTE ON AVAILABILITY Handed by Seat wall 1-Piece, New Construction (60"x 36"ID)
Model: APFXST6238LD1.125R
Made in America

US$4,132.00 Save 32% US$6,059.00

(Shower stall only)

Model: APFXST6238LD1.125R
Made in America

Out of Stock
Out of Stock

*NOTE on AVAILABILITY: Due to a temporary supply chain delay, any orders for Linear Drain showers will ship without drain grates. Grates will be provided once they are available

Freedom ADA Roll in Showers with linear drains have a 60” x 36” inside dimension to meet ADA requirements. The innovative pre-molded linear drain prevents water from escaping onto the bathroom floor. The 1 1/8" threshold is designed for  flush shower entrance designs and may need to be recessed to meet ADA requirements, or you can build the bathroom floor up to within acceptable height.

ADA Compliant Trench Drain Roll in Shower

One-piece roll in ADA showers are perfectly designed for new construction projects and are easy to install. ADA handicapped accessible showers have a pre-leveled shower floor that is sloped towards the drain. ADA Fiberglass showers have a large subway tile pattern, with durable, easy-to-clean applied acrylic finish.

The walls are fully reinforced for added accessories and sturdiness. Order a factory installed folding shower seat and grab bars to meet ADAAG guidelines. Complete your ADA compliant roll in shower with recessed soap dishes, plumbing fixtures and more. Simplify your construction project by choosing Freedom showers for large projects, senior living or assisted living facilities. For peace of mind, Freedom Showers come with a 30 year manufacturer's warranty.


ADA Linear Drain Shower:

  • Outside pocket dimensions: 62¼”w x 38⅛”d x 78¾”h
  • Inside dimension 60” x 36” x 76¾"
  • ADA compliant when properly installed
  • California Title 24 compliant
  • 1-piece for new construction
  • Integral front trench drain, with stainless grate
  • 1⅛" skirt exterior threshold
  • Handed by the Right Seat side
  • Self-supporting, pre-leveled shower base
  • 12" x 24" subway tile pattern
  • Easy-to-clean applied acrylic finish
  • Textured slip-resistant floor
  • Full reinforced backing
  • Made in America
  • 30 Year Manufacturer’s Limited Warranty

Available Accessories:

  • L shaped padded Folding Shower Seat (factory installed)
  • Grab Bars (factory installed)
  • Shower Rod (ships loose)
  • Weighted Curtain
  • Pressure Balance Mixing Valve
  • Hand-held Shower and Slide Bar
  • Caulkless Drain
  • Large recessed soap dish (shipped loose)
  • Small recessed soap dish (shipped loose)


Click here for California Prop 65 Warning


Product Specification (PDF) 30/05/2018 165.17KB
Installation (PDF) 22/03/2019 2.18MB
Soap Niche Installation (PDF) 09/06/2021 1.1MB


Freedom Showers Linear Drain Information Video

Freedom Showers Linear Drain Information Video

The Freedom Linear Drain shower stall offers simple functional installation. Popular in hospital and Aging in Place settings, this durable shower will can meet commercial ADA code compliance. This shower stall is wheelchair accessible and can be fully equipped with accessories. Choose from a list of options such as: hand held shower with glide bar, grab bars, folding shower bench and recessed shampoo niches.

Linear Drain Shower Installation Video from Freedom Showers

Linear Drain Shower Installation Video from Freedom Showers

This video illustrates the installation process for a Freedom Trench Drain Shower.
