62¼" x 32⅛" ADA Linear Drain Roll In Shower, Right Seat

Out of Stock
(Shower stall only)

62¼" x 32⅛" ADA Linear Drain Roll In Shower, Right Seat

Out of Stock
SEE NOTE ON AVAILABILITY Handed by Seat wall 1-Piece, New Construction (60"x 30"ID)
Model: APFXST6232LD1.125R
Made in America

US$3,794.00 Save 32% US$5,557.00

(Shower stall only)

Model: APFXST6232LD1.125R
Made in America

Out of Stock
Out of Stock

*NOTE on AVAILABILITY: Due to a temporary supply chain delay, any orders for Linear Drain showers will ship without drain grates. Grates will be provided once they are available

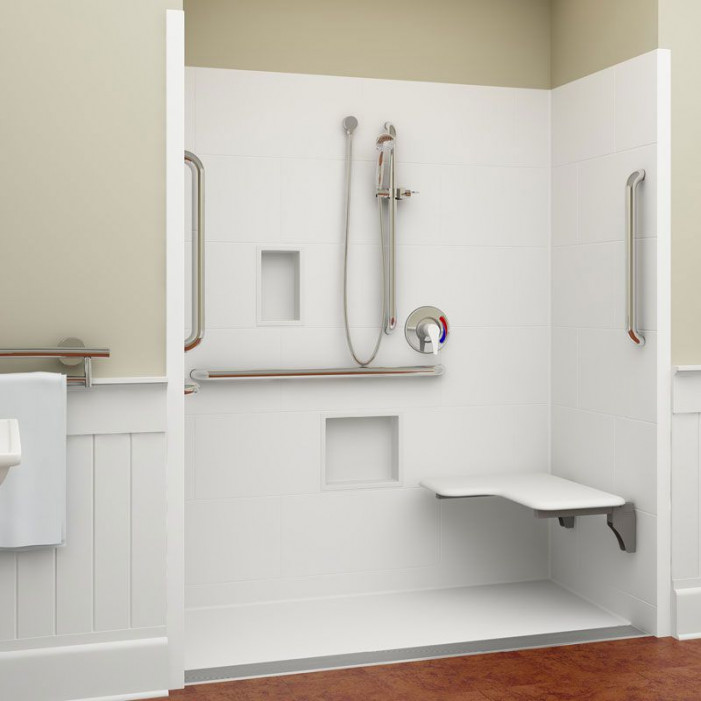

Freedom Linear Drain ADA Roll in Showers have a 60” x 30” inside dimension as per ADA requirements. One-piece ADA roll in showers are perfectly designed for new construction projects.

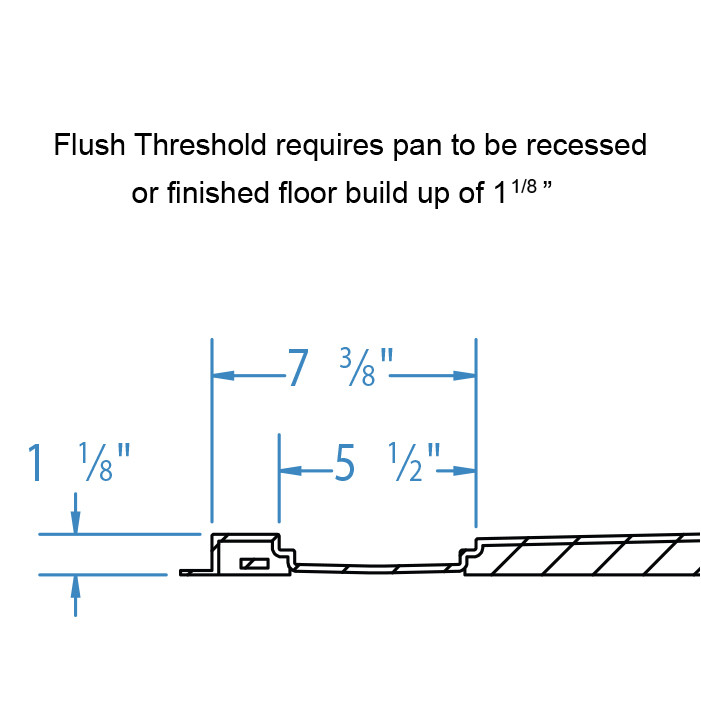

The innovative pre-molded linear drain prevents water run off onto the bathroom floor. The 1⅛" threshold is designed for zero barrier flush shower entrance designs and may need to be recessed to meet ADA requirements, or build the bathroom floor up to within acceptable height.

ADA Compliant Freedom Roll in Shower

ADA handicapped accessible showers have a pre-leveled shower base, with the shower floor sloped towards the drain. ADA Fiberglass showers have a modern over-sized subway tile pattern, with durable, easy-to-clean applied acrylic finish.

Full reinforced backing adds sturdiness and structural reinforcement for added accessories. Order with a factory installed folding shower seat and grab bars to meet ADAAG guidelines for an ADA compliant roll in shower. A great choice for large projects, senior living or assisted living facilities, Freedom Showers are easy to install, simplifying your construction project. For peace of mind, Freedom Showers come with a 30 year manufacturer's warranty.


ADA Linear Drain Roll In Shower:

  • Outside pocket dimensions: 62¼”w x 32⅛”d x 78¾”h
  • Inside dimension 60” x 30” x 76¾"
  • ADA compliant when properly installed
  • California Title 24 compliant
  • 1-piece for new construction
  • Integral front trench drain, with stainless grate
  • 1⅛" skirt  exterior threshold
  • Handed by the Right Seat side
  • Self-supporting, pre-leveled shower base
  • 12" x 24" subway tile pattern
  • Easy-to-clean applied acrylic finish
  • Textured slip-resistant floor
  • Full reinforced backing
  • Made in America
  • 30 Year Manufacturer’s Limited Warranty

Available Accessories:

  • L shaped padded Folding Shower Seat (factory installed)
  • Grab Bars (factory installed)
  • Shower Rod (ships loose)
  • Weighted Curtain
  • Pressure Balance Mixing Valve
  • Hand-held Shower and Slide Bar
  • Caulkless Drain
  • Large recessed soap dish (shipped loose)
  • Small recessed soap dish (shipped loose)

Click here for California Prop 65 Warning


Product Specification (PDF) 02/07/2018 167.45KB
Installation (PDF) 23/03/2019 2.18MB
Soap Niche Installation (PDF) 09/06/2021 1.1MB


Freedom Showers Linear Drain Informational Video

Freedom Showers Linear Drain Informational Video

The Freedom Linear Drain shower stall offers simple functional installation. Popular in hospital and Aging in Place settings, this durable shower will can meet commercial ADA code compliance. This shower stall is wheelchair accessible and can be fully equipped with accessories.

Linear Drain Shower Installation Video from Freedom Showers

Linear Drain Shower Installation Video from Freedom Showers

This video illustrates the installation process for a Freedom Trench Drain Shower.
